Code Lab

Introduction

TODO: add here more about Code NOTE: in the actual version a direct integration between Plan, Control and Code is not working and will be fixed in upcoming release

How to switch to Code from Home Page

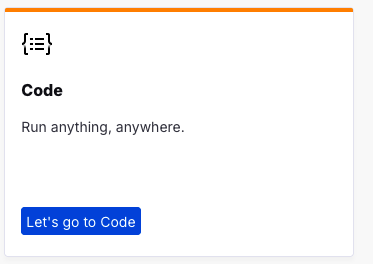

You can switch to Code by either pressing "Let's go to Code" button on its tile:

Code Tile lets go

Or you can always switch using the central app switcher on the top left of your screen:

Central App Switcher

Note: it takes a few seconds till your environment is setup and running, please be patient.

Using Code

First entry view, Toggle bar and Sidebars

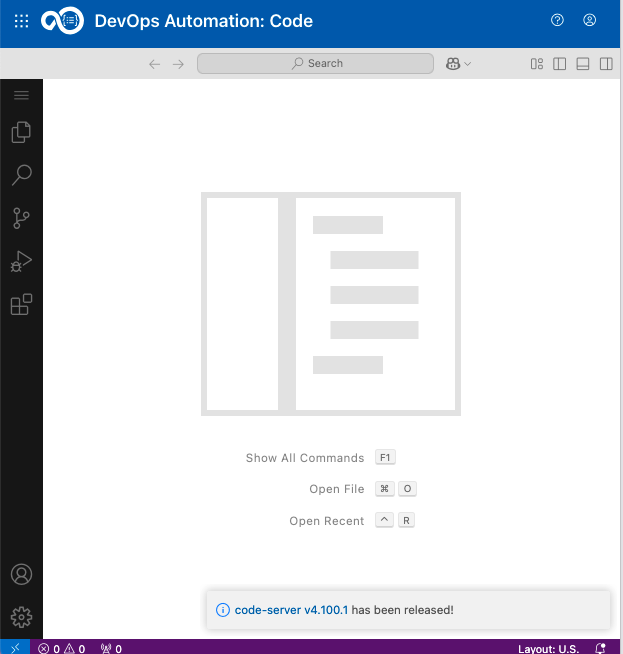

Your first entry is a clean and empty workspace:

First Entry

You can open several additional views by using the Toggle bar on the top right corner of your screen:

Toggle Bar

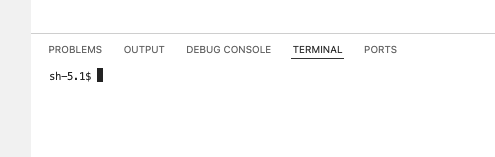

Use the "Toggle Panel" Icon Panel Icon to open the Panel View which provides different tabs of information like: Problems, Output, Debug Console, Terminal and Ports:

Panel View

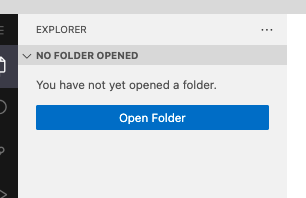

Use the "Toggle Primary Sidebar" icon Primary Sidebar Icon to open the Primary Sidebar (right) which provides access to workspace and files:

Primary Sidebar View

Use the "Toggle Secondary Sidebar" icon Secondary Sidebar Icon to open the Secondary Sidebar (left) which provides additional views:

Secondary Sidebar View

Clone a Repository

NOTE: Due the issue with integration (will be fixed in next release) we have to clone repository manualy and set some global settings for git.

  1. Open the Panel view using the Toggle Panel icon and select the Terminal view.
  2. In the Terminal View enter the git clone command using your username and previously created access token. Use the repository you have created in the Control lab. Then set global git settings:
    1. 'git config --global user.name ""'
    2. 'git config --global user.email ""`
    3. git clone https://<your git studentid>:<your access token>@<repo url>
  3. Here an example with Student13:
    1. git config --global user.name "student13-labs.com"
    2. git config --global user.email "student13@labs.com"
    3. git clone https://student13-labs.com:cba1ae07eb42313eae4c27f953bfdddba235fb1e@devops101.eu-gb.containers.appdomain.cloud/control/student13-labs.com/PizzaApp.git
  4. Example Screenshots:
    1. Terminal set Git settings

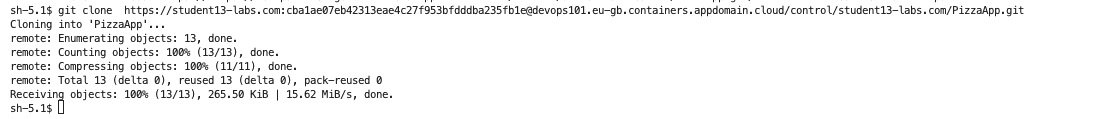

    2. Terminal clone repo

Open the freshly cloned repository

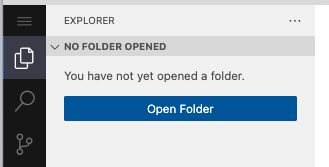

Click on the Primary Sidebar on the Open Folder button:

Open Folder

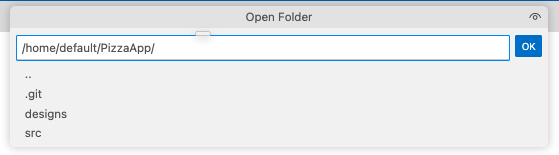

Enter the location of your cloned repository:

Select the Location

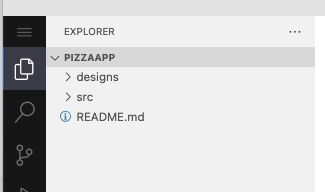

Now you have access to the cloned repository:

First look at folder

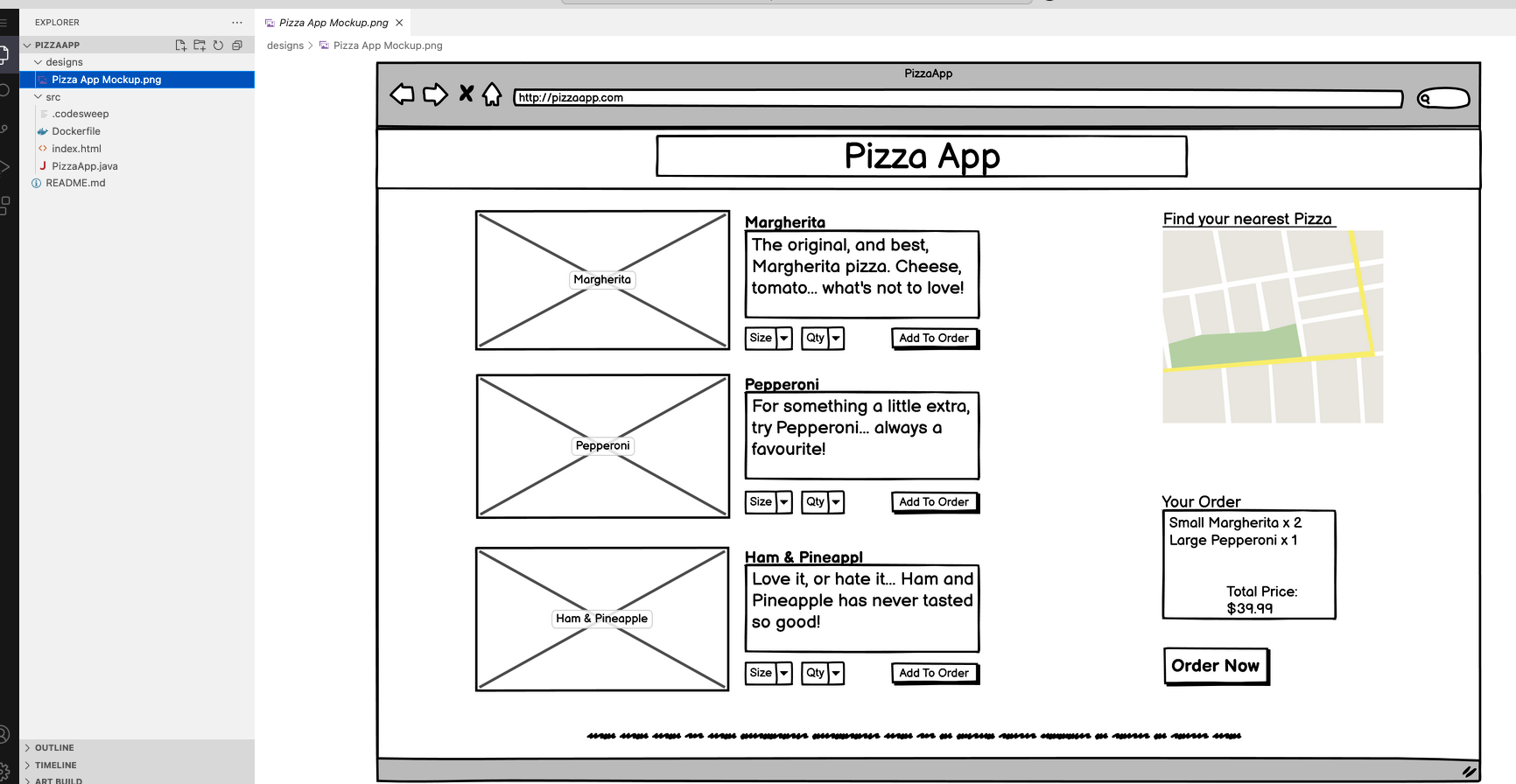

Look around and open the Mockup image to view the Design:

Look around and open the image

Edit a file and commit the changes

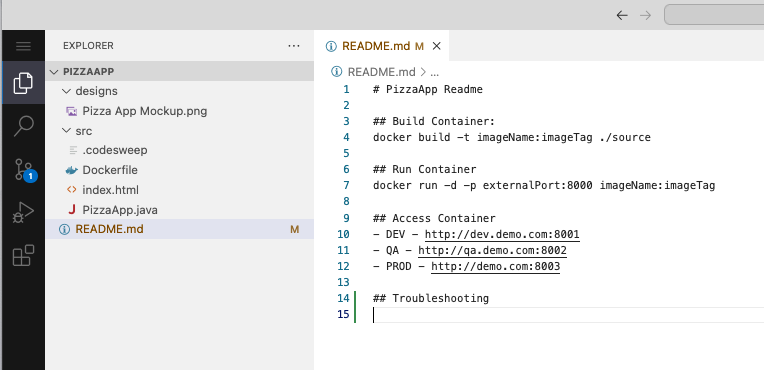

Open the README.md file and add some text. In this example added "Troubleshooting" at the end of the file then saved changes"

File Changed

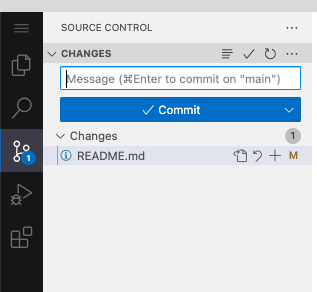

Now click on the Source Control icon Source Control Icon which shows the changed files and provide a good commit message and press commit:

Changes View

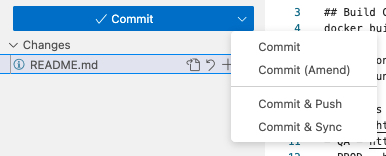

Click on the triangle on the Commit Button to open the menue:

Commit menue

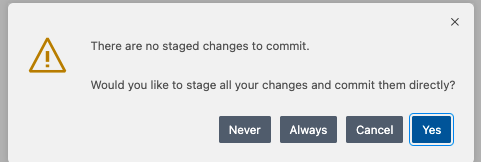

Click on Commit and Push. A new popup will appear and ask how to stage the changes. Press on Always to proceed:

Commit Stage Changes Popup

Congratulations you have commited your first change into your repository. In the Graph view you will see your commit message:

Graph View

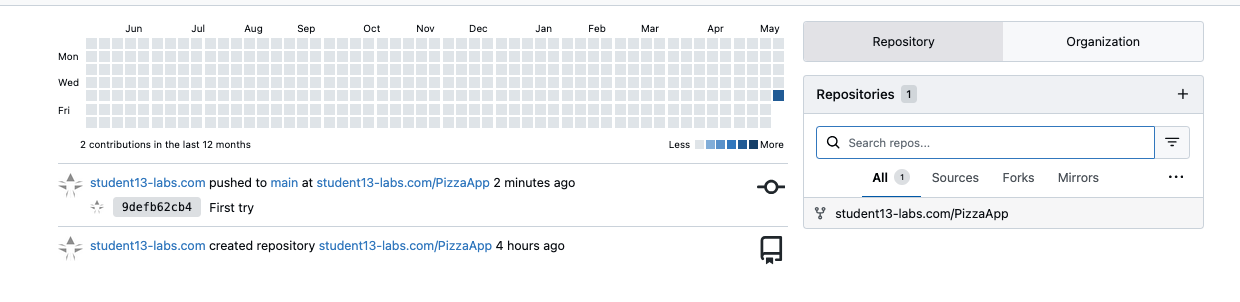

Switch Back to Control and verify that in the activity view you have your commit visible:

New Activity in Control

Close and terminate Environment

Your development environment runs in it's own pod and uses resources. When you are finished with your work it is recommended to terminate the Environment.

NOTE: your session will not be terminated when you switch between capabilities or just close your browser!

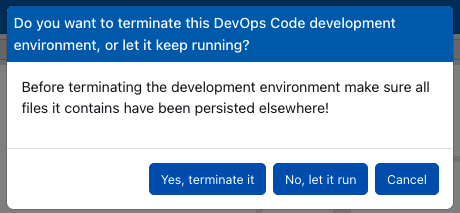

Use the Logout icon Code Logout to get a popup which asks what to do with your running development environment:

Code Environment Terminate or Not

Click on "Yes, terminate it" to shutdown the pod, which will delete all unsaved or pushed changes! Or you can decide to keep it alive with "No, let it run" if you want to continue working later.

Conclusio

Congratulations you have finished the Code Lab.
