Build Lab¶

Introduction¶

How to switch to Build from Home Page¶

Step	Details	Additional Information
	You can always switch using the central app switcher on the top left of your screen
	Or You can switch directly to Build by using the button/link from What would you like to do today section

Overview¶

Build Project Runs¶

Step	Details	Additional Information
	The initial page shown in Build is the Project build runs page
	Click on Triangle to show results of most recent builds
	Additional metrics like Build & Source activities and Unit test results are shown on the right side
	On top of the list 3 Buttons, Create, Import and View Inactive/Active are shown

Build Process Detail¶

Step	Details	Additional Information
	Click on one of the link to view the details of all runs
	Shows overview on most recent build runs and their results
	additional information are the success rate of all builds, Build & Source activity and test results
	The time period can be changed for the metrics using the filter control

Templates¶

Project Templates¶

Process Templates¶

Step	Details	Additional Information
	Show Build Process Templates

Process Template Detail¶

Step	Details	Additional Information
	Show Build Process Template Detail

Process Template Definition¶

Step	Details	Additional Information
	Show Build Process Template Definition

Source Templates¶

Step	Details	Additional Information
	Show Source Templates

Job Templates¶

Step	Details	Additional Information
	Show Job Templates

Job Template Steps¶

Step	Details	Additional Information
	Show Job Steps

Job Template Step Detail¶

Step	Details	Additional Information
	Show Job Step Details

Access Token¶

Access Token (also known as Personal Access Token, short PAT) are needed for external access to DevOps Build to read, create and update data or run jobs.

Step	Details	Additional Information
	For external access to the build functions you need to provide an Access Token

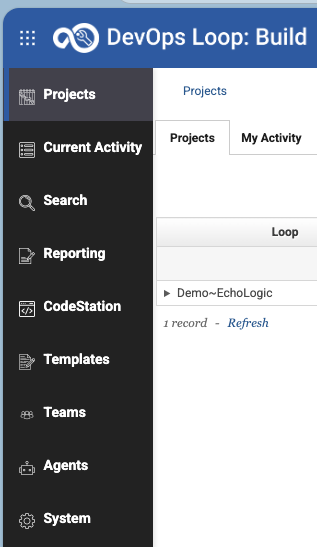

	To create a new token please switch to the System settings from the Sidebar

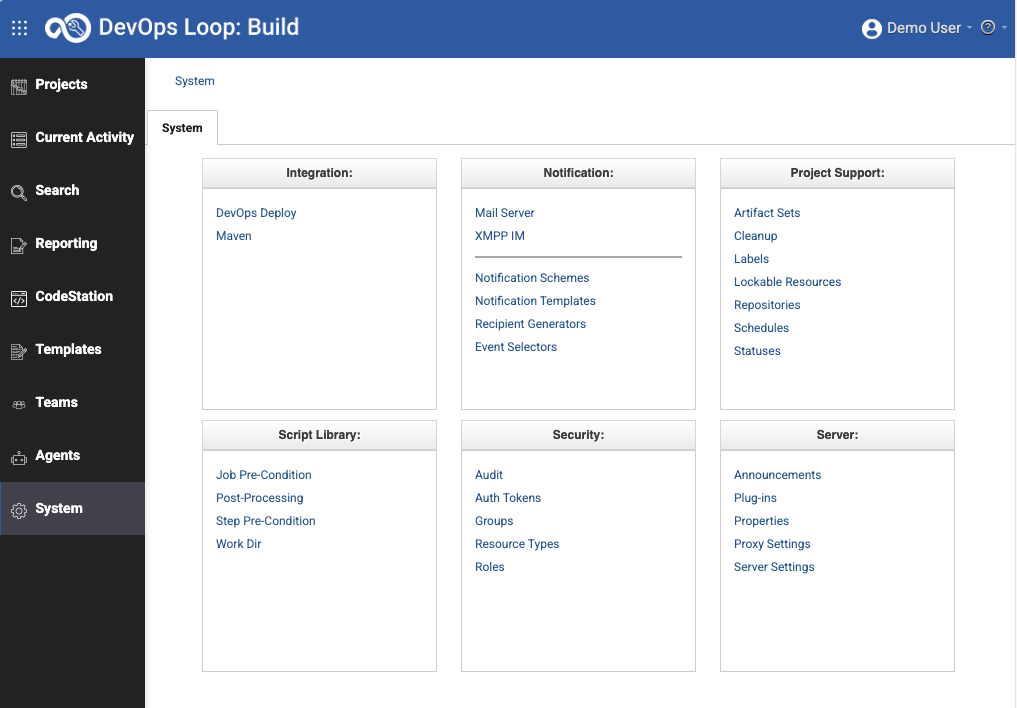

	System Settings view is shown.
	Click on Auth token

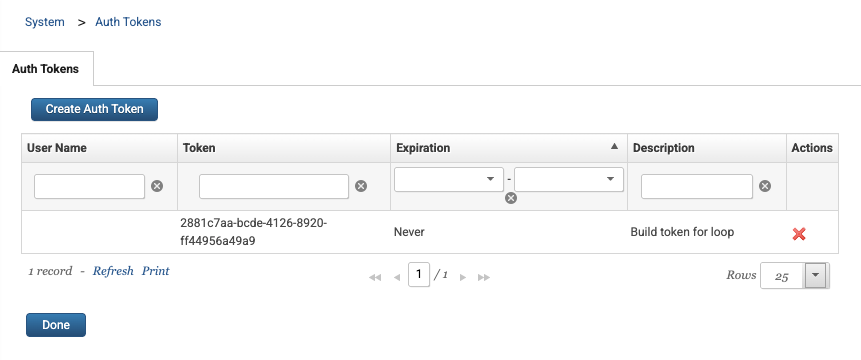

	A new view with existing Access tokens is shown

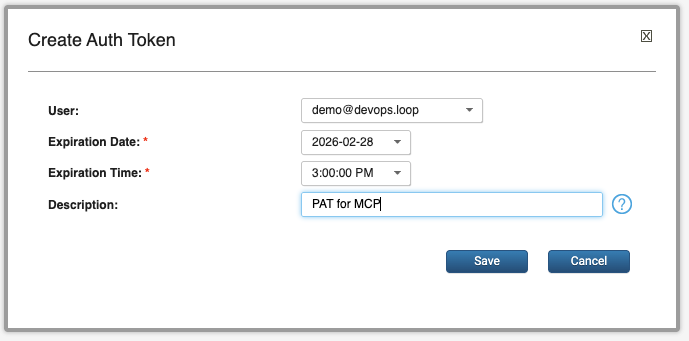

	Click on Create Auth token Button and a new Dialog is shown
	Fill in the required fields for User, Expiration and a comment then press the Save Button

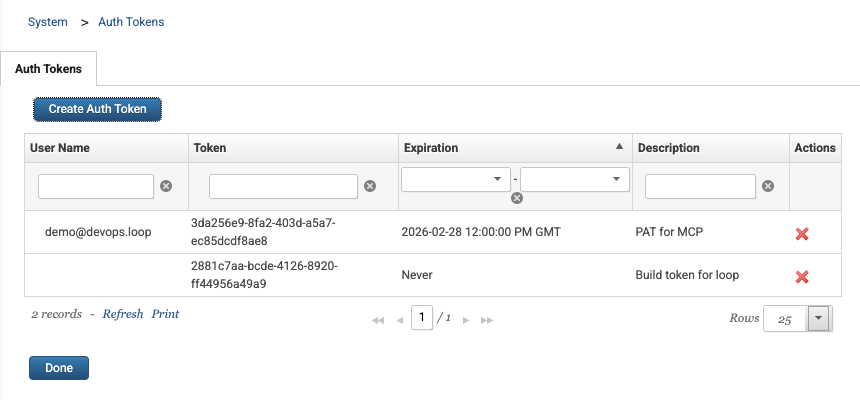

	An updated Authorization Token List view is shown with new token
	Copy new Access Token and use in external tool
