Setting up MCP Server¶

MCP Server settings may vary between tools, please check documentation of the tool you want to use.

VSCode and MCP Server¶

Please have a look how to use MCP Server with VSCode in this documentation. More MCP Server for VSCode can be found in the Marketplace

Adding MCP Server¶

Using the Add MCP Server command¶

Step	Details	Additional Information
	Click on the View Menu and select Command Palette
	In the Command View search for Add MCP Server and click on it

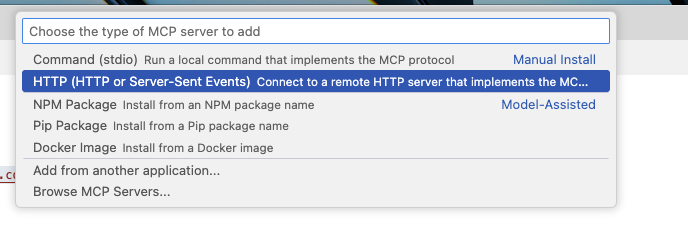

	From the listbox select HTTP

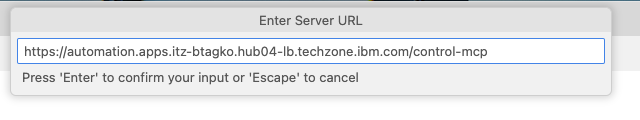

	Enter the MCP Server URL (example for Control MCP server)
	Enter the Name for this MCP Server section

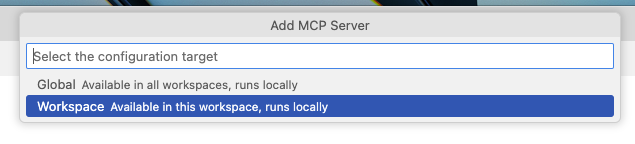

	Decide where to store this configuration, for the demo use local Workspace

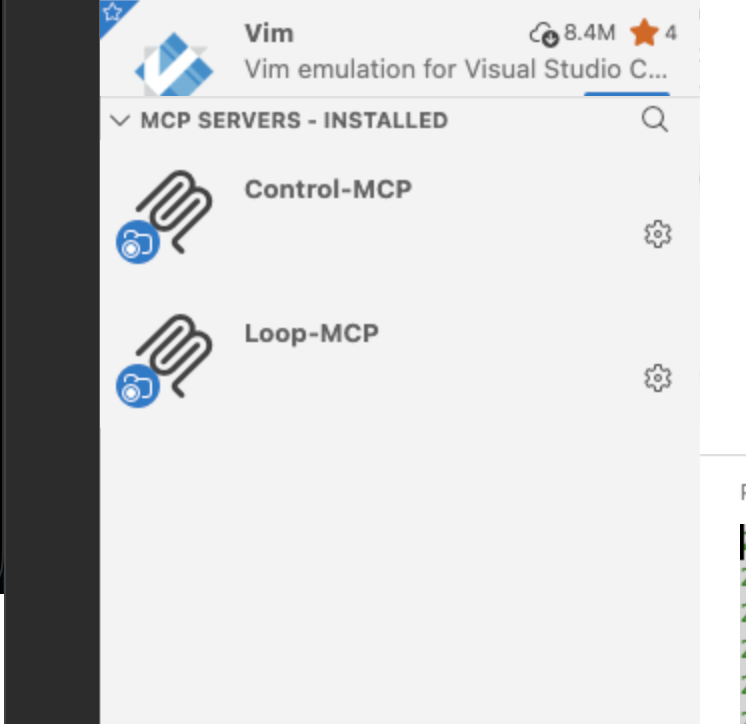

	Added MCP Servers will be shown in the Extension View under MCP Server

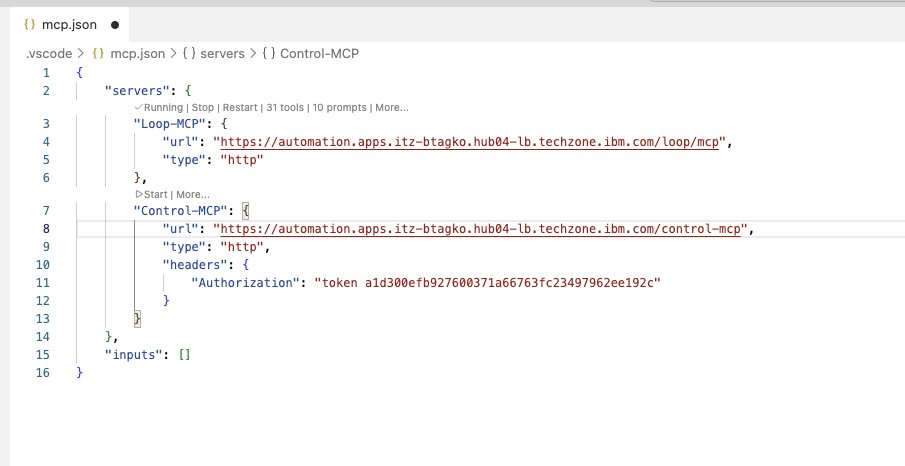

	You can open the mcp.json to add more manualy (for example the Authorization key for Control MCP)

Manualy editing the mcp.json file¶

To be able to manualy edit the mcp.json file you have to first let it be created by VSCode, easiest way is to use Add MCP Server command to add an entry then open it from the MCP server settings for editing.

Preparing the mcp.json file¶

NOTE: Templates for mcp.jsonfiles with preprovided sections: for local mcp server and for remove mcp server

Add the MCP Servers into the mcp.json file in the "servers" section.

JSON

{
  "servers": {
  },
  "inputs": []
}

Loop MCP Server¶

The Loop MCP server uses single sign on for authentication so the setup is very simple. Please have a look at the documentation for Loop MCP server usage

Configure the MCP Server Section¶

JSON

"Loop-MCP-Server": {
  "url": "https://<hostname>/loop/mcp",
  "type": "http"
}

Control MCP Server¶

Get the necessary Access Token¶

Step	Details	Additional Information
	For external access to the repositories you need to provide an Access Token
	to create a new token, click on your User Profile and select Settings
	In the Settings view click on Access Tokens then enter a Token name to identify its purpose

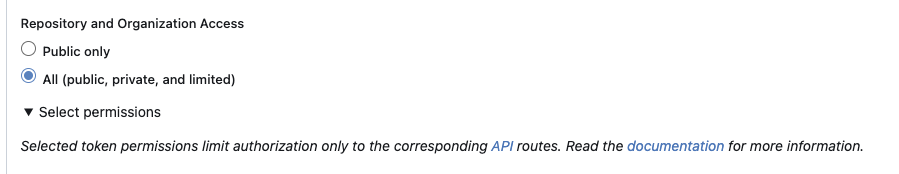

	Click on Select Permissions to set the access rights, select All to cover all repositories
	You can set any permission setting as you need it. Please be aware to limit the access though to prevent security issues

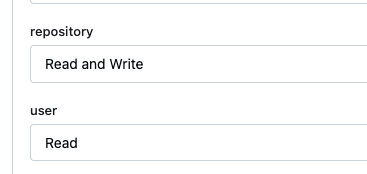

	Example: Set Repository to Read and Write and Set User to Read
	These settigs are the minimal needed to provide access to work with your repository through external tools
	Press Generate Token
	Do not to forget to Copy and Paste the token!

Configure the MCP Server Section¶

Use your token and replace the <control token> part with your token in the Control MCP Server section.

JSON

"Control-MCP-Server": {
    "url": "https://<hostname>/control-mcp",
    "type": "http",
    "headers": {
    "Authorization": "token <control token>"
    }
}

Test MCP Server¶

Please have a look at the Testhub Documentation how to configure the MCP server for more details.

Get the necessary Offline User Token¶

Step	Details	Additional Information

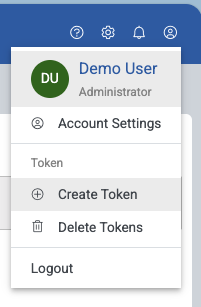

	click on the Profile Link on the top right of your screen to get a menue
	Click on Create Token in the menue for a new PAT

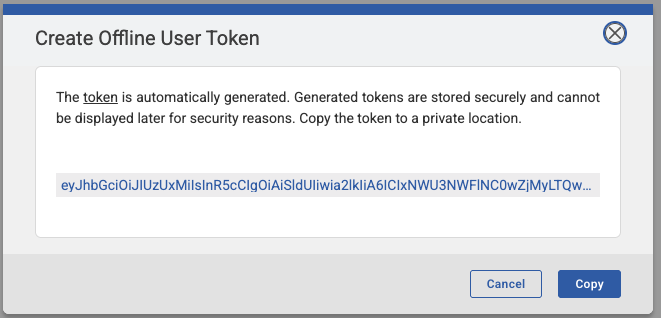

	A new PAT will be created automatically and shown. COPY and PASTE into a secure storage for furter usage
	click on Close to close the dialog

Configure the MCP Server Section¶

Use your token and replace the <test token> part with your token in the Test MCP Server section.

JSON

"Test-MCP-Server": {
    "url": "https://<hostname>/test/mcp/stream",
    "type": "http",
    "headers": {
    "Authorization": "Offline <test token>"
    }
}

Deploy MCP Server¶

Deploy MCP Server requires a slightly different approach. Please have a look at the documentation for Deploy MCP server usage for more details.

Get the necessary Token¶

Step	Details	Additional Information

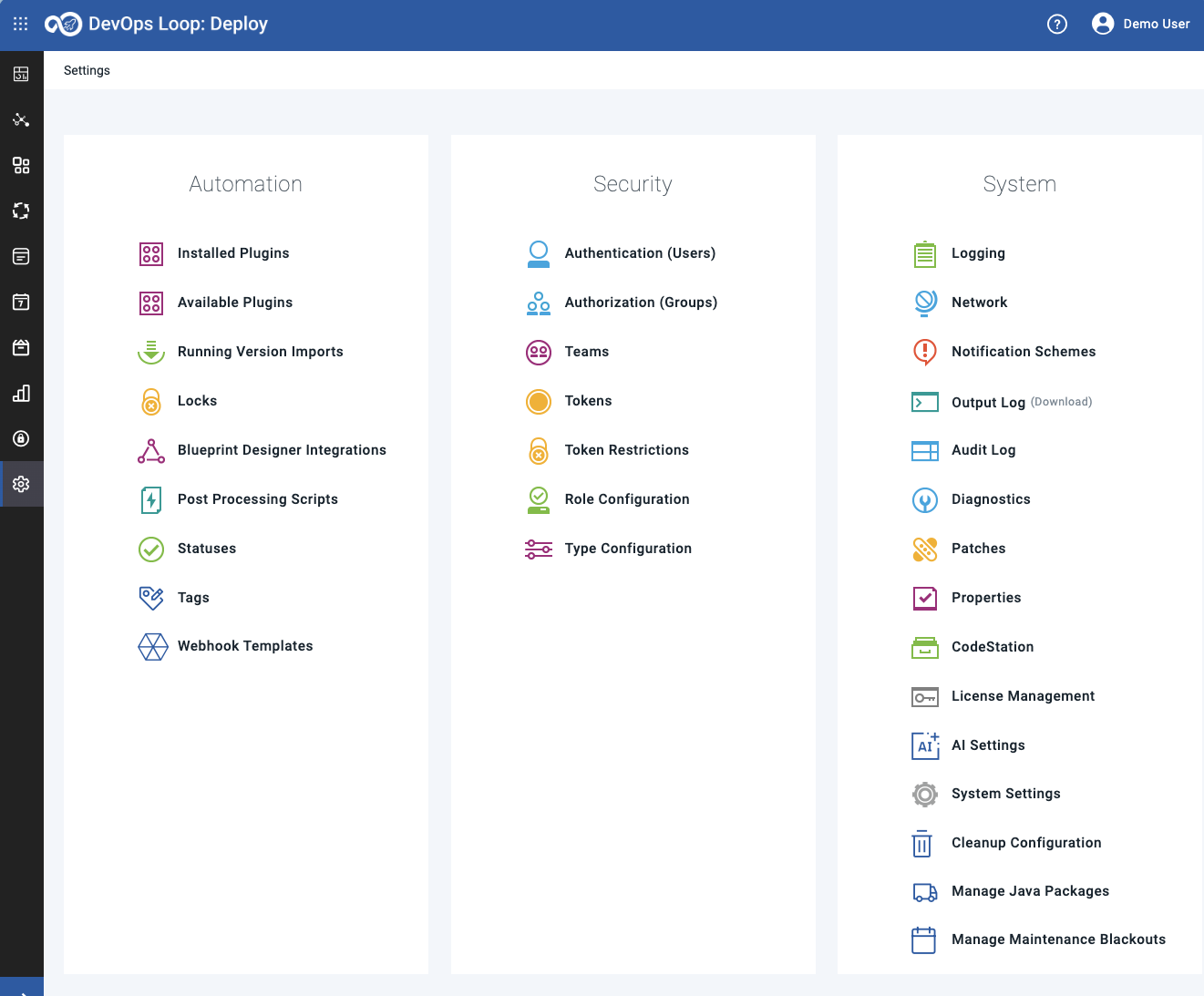

	click on Tokens in the Security settings to view and create new PAT

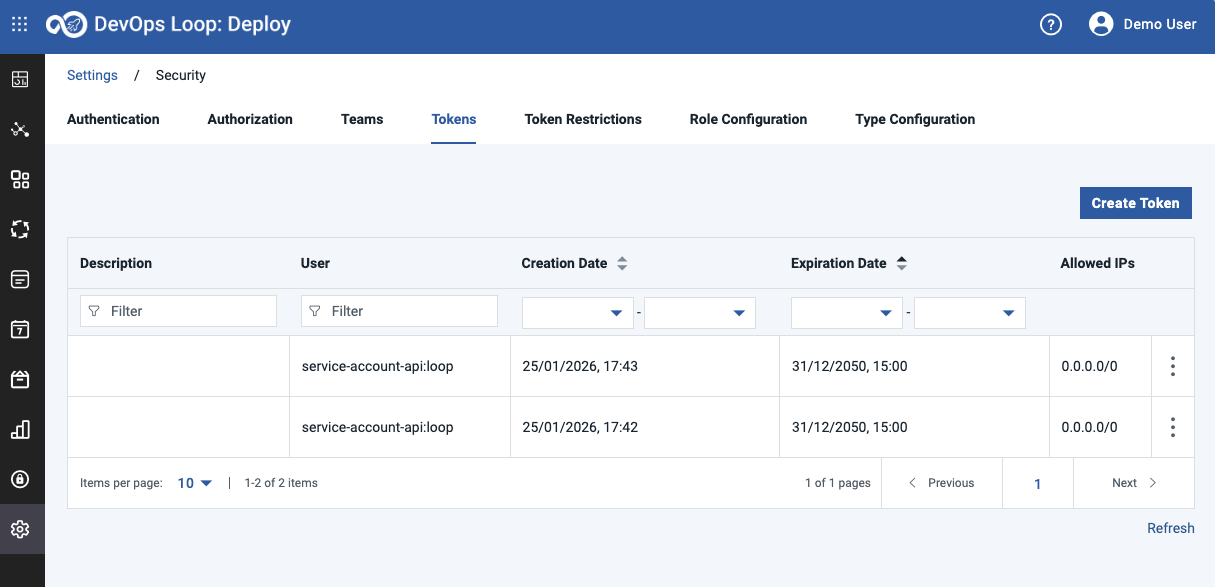

	A list of existing Tokens (PAT) is shown

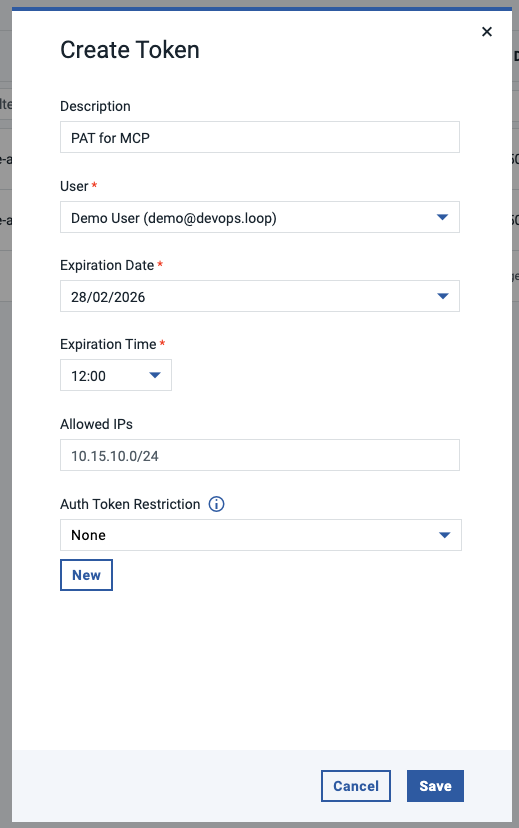

	Click on Create Token and fill in the details in the new dialog
	Provide a description, user, expiration and optional restrictions from where this PAT can be ued

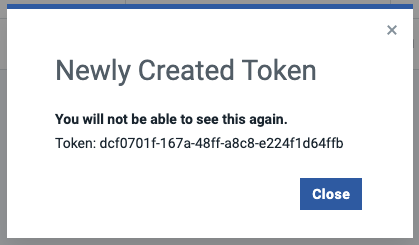

	Click on Save ![Save][ButtonSave] and the new PAT will be shown
	Do not to forget to COPY and PASTE the PAT into a secure storage for furter usage, then click Close

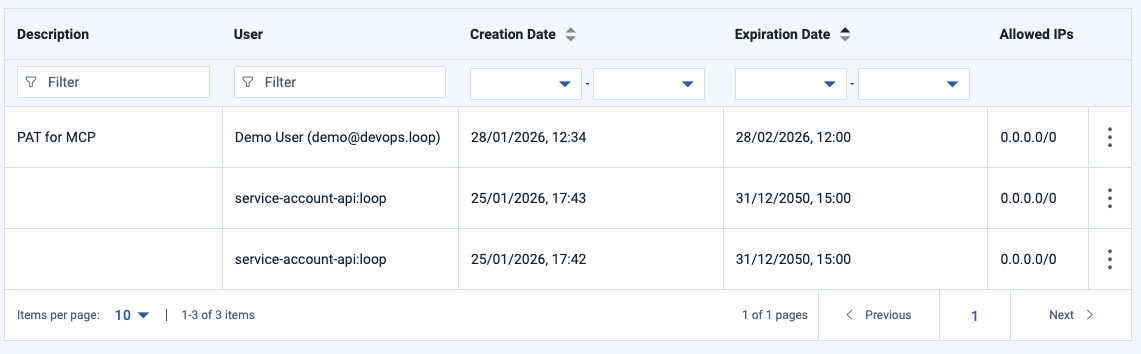

	An updated PAT list is shown

Encrypt Token¶

You need to use base64 to encode the token with the Authentication Type string.

Encrypt on MacOS or Linux

Bash

echo -n "PasswordIsAuthToken:<Your Deploy Token>" | base64

Encrypt on Windows

PowerShell

$encoded  = [Convert]::ToBase64String([System.Text.Encoding]::UTF8.GetBytes("PasswordIsAuthToken: <Your Deploy Token>"))
write-output $encoded

Configure the MCP Server Section¶

Use the output and replace the <base64 encoded deploy token> part with it in the Deploy MCP Server section.

JSON

"Deploy-MCP-Server": {
    "url": "https://<hostname>/deploy/mcp",
    "type": "http",
    "headers": {
    "Authorization": "Basic <base64 encoded deploy token>"
    }
}

Measure/Release (Velocity) MCP Server¶

Measure and Release use the services of DevOps Velocity. Please have a look at the DevOps Velocity documentation MCP section for more details.

Get the necessary User Access Key¶

Step	Details	Additional Information

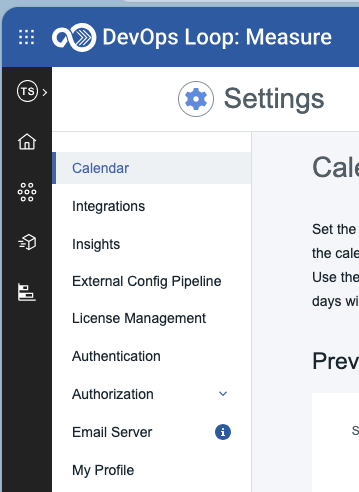

	click on the Settings Link on the top right of your screen to get a menu
	click on My Profile to view the Profile settings

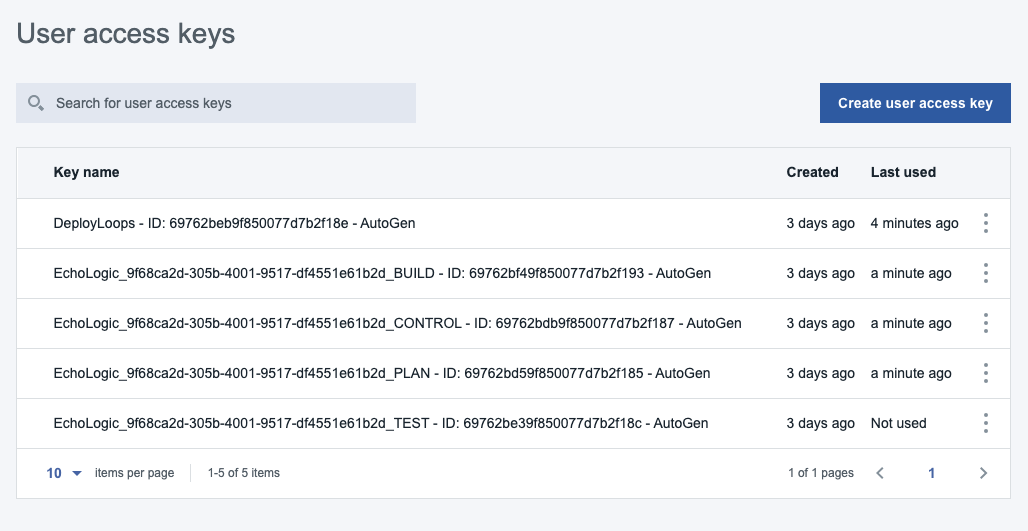

	A list of User Access Keys (or PAT) is shown

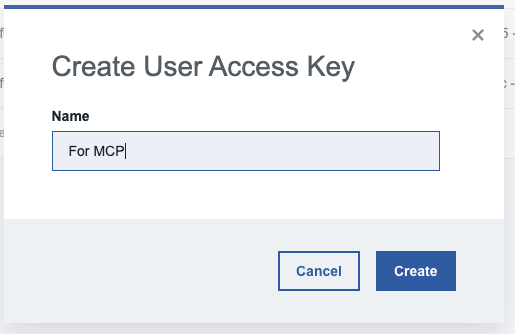

	Click on the Create User Access Key and a new Dialog appears
	Provide a name for the UAK/PAT and click Create Button to get the token

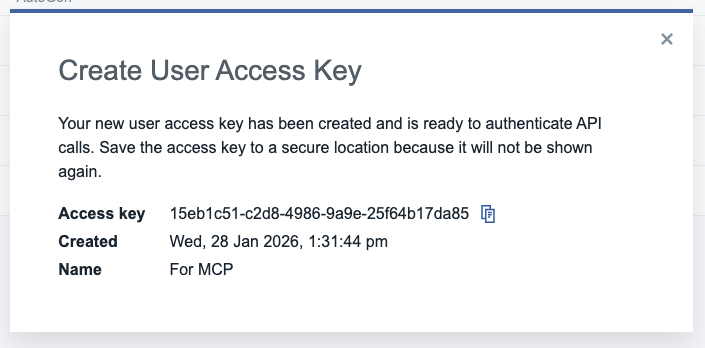

	COPY and PASTE the key into a secure storage for further usage, then close the dialog

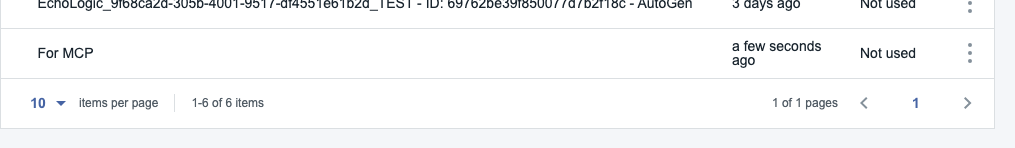

	The newly created UAK/PAT is shown

Configure the MCP Server Section¶

Use your User Access Key and replace the <velocity token> part with your token in the Velocity MCP Server section.

JSON

"Velocity-MCP-Server": {
  "url": "https://<hostname>/velocity/mcp",
  "type": "http",
  "headers": {
    "Authorization": "UserAccessKey <velocity token>"
  }

Plan MCP Server¶

In the actual Version of Loop the remote MCP Server for Plan is not available, it is planned to be delivered in the next release. We need to use the local MCP Server which requires the Personal Access token and a Teamspace ID (which is named Database ID in Plan)

Get the necessary Personal Access Token¶

Step	Details	Additional Information
	Click on your Profile Icon in the Sidebar and select Personal Access Token

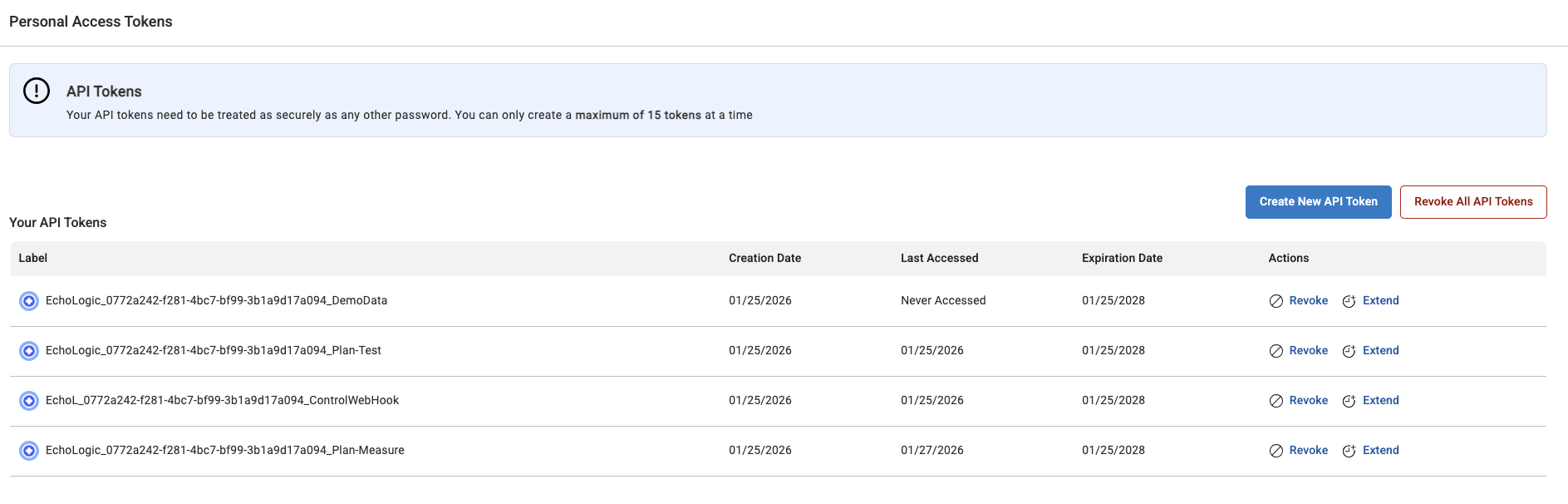

	A list of existing Personal Access Tokens (PAT) is shown
	Click on Create New API Token

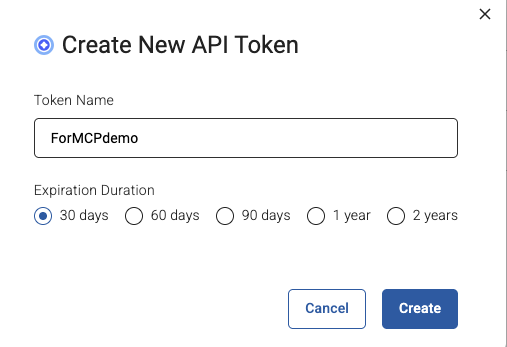

	a dialog is shown, please provide a name and a validity time
	PAT is created, press the Copy button to copy into Clipboard
	PAT is copied, paste it into a secure storage for furter use

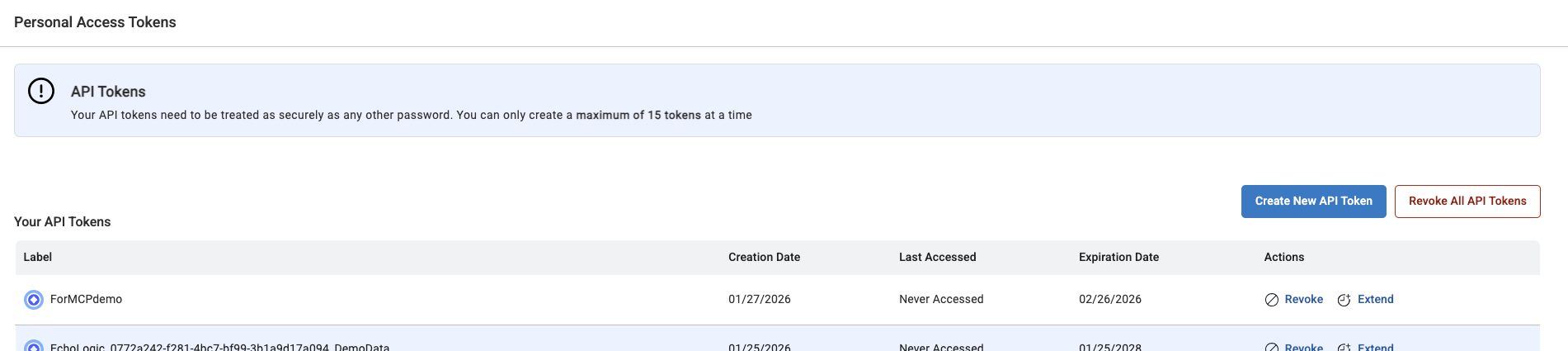

	Close the dialog and updated list is shown

Get the necessagery Teamspace (DB) ID¶

Step	Details	Additional Information
	Please use the "Home" button on the left sidebar to switch to the Home page for Plan
	On the right side click on My Applications

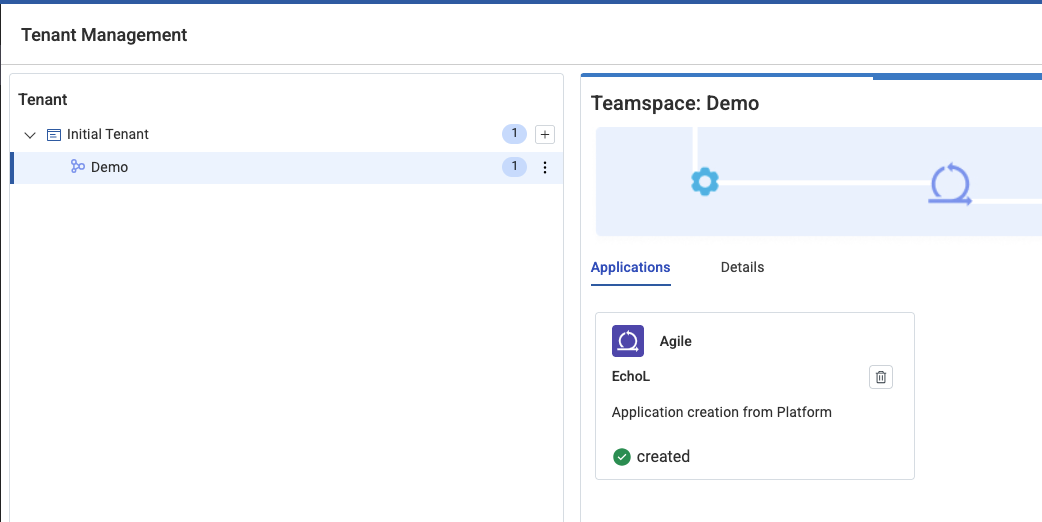

	Click on Tenant Management to open a the Tenant View
	In this view select your Tenant (in this example Demo)

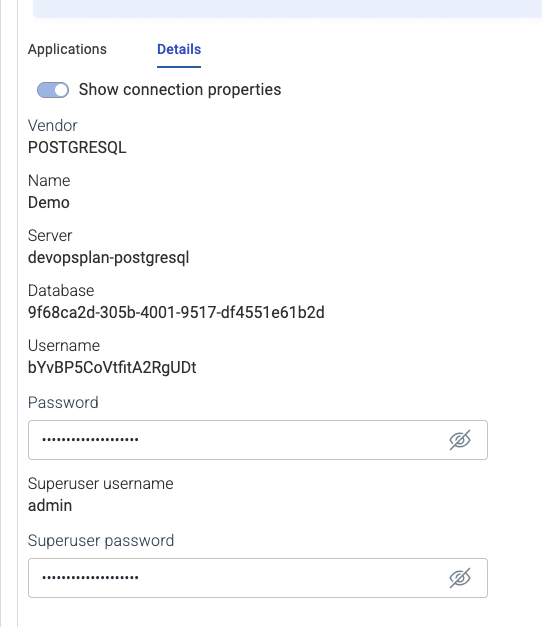

	select the Details view tab and switch it on
	more information is shown about the tenant
	The Database ID is shown, and copy it for further usage

Configure the MCP Server Section¶

Use your Personal Access token and replace the <plan token> part with your token in the Plan MCP Server section, replace the <teamspace id>with the value of the DB ID.

JSON

"plan-mcp-server": {
  "command": "npx",
  "args": [
    "-y",
    "@securedevops/mcp-devops-plan"
  ],
  "env": {
    "PLAN_ACCESS_TOKEN": "<plan token>",
    "PLAN_SERVER_URL": "https://<hostname>/plan",
    "PLAN_TEAMSPACE_ID": "<teamspace id>"
  },
  "type": "stdio"
}

VSCode mcp.json template¶

Here the mcp.json template file using available remote MCP server and the local one for DevOps Plan (will be changed as soon as the remote one is available)

JSON

{
  "servers": {
    "Loop-MCP-Server": {
      "url": "https://<hostname>/loop/mcp",
      "type": "http"
    },
    "Control-MCP-Server": {
      "url": "https://<hostname>/control-mcp",
      "type": "http",
      "headers": {
        "Authorization": "token <control token>"
      }
    },
    "Test-MCP-Server": {
      "url": "https://<hostname>/test/mcp/stream",
      "type": "http",
      "headers": {
        "Authorization": "Offline <test token>"
      }
    },
    "Deploy-MCP-Server": {
      "url": "https://<hostname>/deploy/mcp",
      "type": "http",
      "headers": {
        "Authorization": "Basic <base64 encoded deploy token>"
      }
    },
    "Velocity-MCP-Server": {
      "url": "https://<hostname>/velocity/mcp",
      "type": "http",
      "headers": {
        "Authorization": "UserAccessKey <velocity token>"
      }
    },
    "plan-mcp-server": {
      "command": "npx",
      "args": [
        "-y",
        "@securedevops/mcp-devops-plan"
      ],
      "env": {
        "PLAN_ACCESS_TOKEN": "<plan token>",
        "PLAN_SERVER_URL": "https://<hostname>/plan",
        "PLAN_TEAMSPACE_ID": "<teamspace id>"
      },
      "type": "stdio"
    },
    "wait_server": {
      "command": "npx",
      "args": [
        "mcp-wait-server@latest"
      ],
      "env": {
        "MCP_WAIT_MAX_DURATION_SECONDS": "210",
        "MCP_WAIT_TOOL_DESCRIPTION": "Waits for a specified number of seconds. Use this to create a delay after starting a long-running operation (like a script or download via another tool), allowing it time to complete before you proceed or check its status."
      }
    }
  },
  "inputs": []
}
